Parking assistance front and rear
Park Assist System (PAS1) has different behaviour depending on which part of the car is approaching an obstacle.

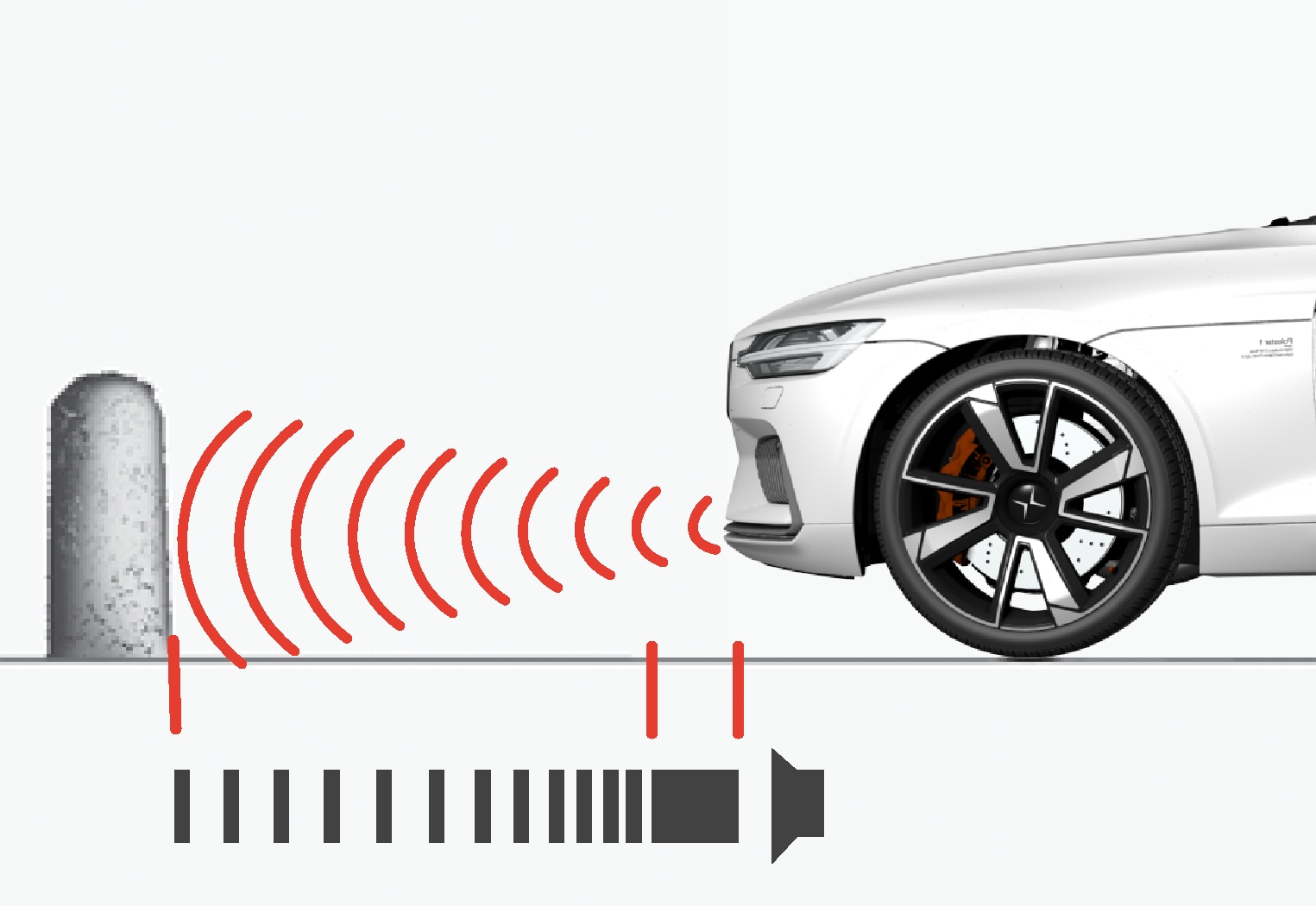

Forwards
![PS-1926-Park Assist System front](https://www.volvocars.com/images/support/img324d6d4a937a481bc0a801522f680cbb_1_--_--_VOICEpnghigh.png)
The Parking Assistance System's front detectors are activated automatically when the engine is started. They are active at speeds below 10 km/h (6 mph).
The measuring range is approx. 80 cm (2.5 ft) in front of the car.
Note
Parking assistance is deactivated when the parking brake is used or P mode is selected in a car with an automatic gearbox.
Important
When auxiliary lamps are fitted: Remember that these must not obscure the sensors - the auxiliary lamps may then be perceived as an obstacle.

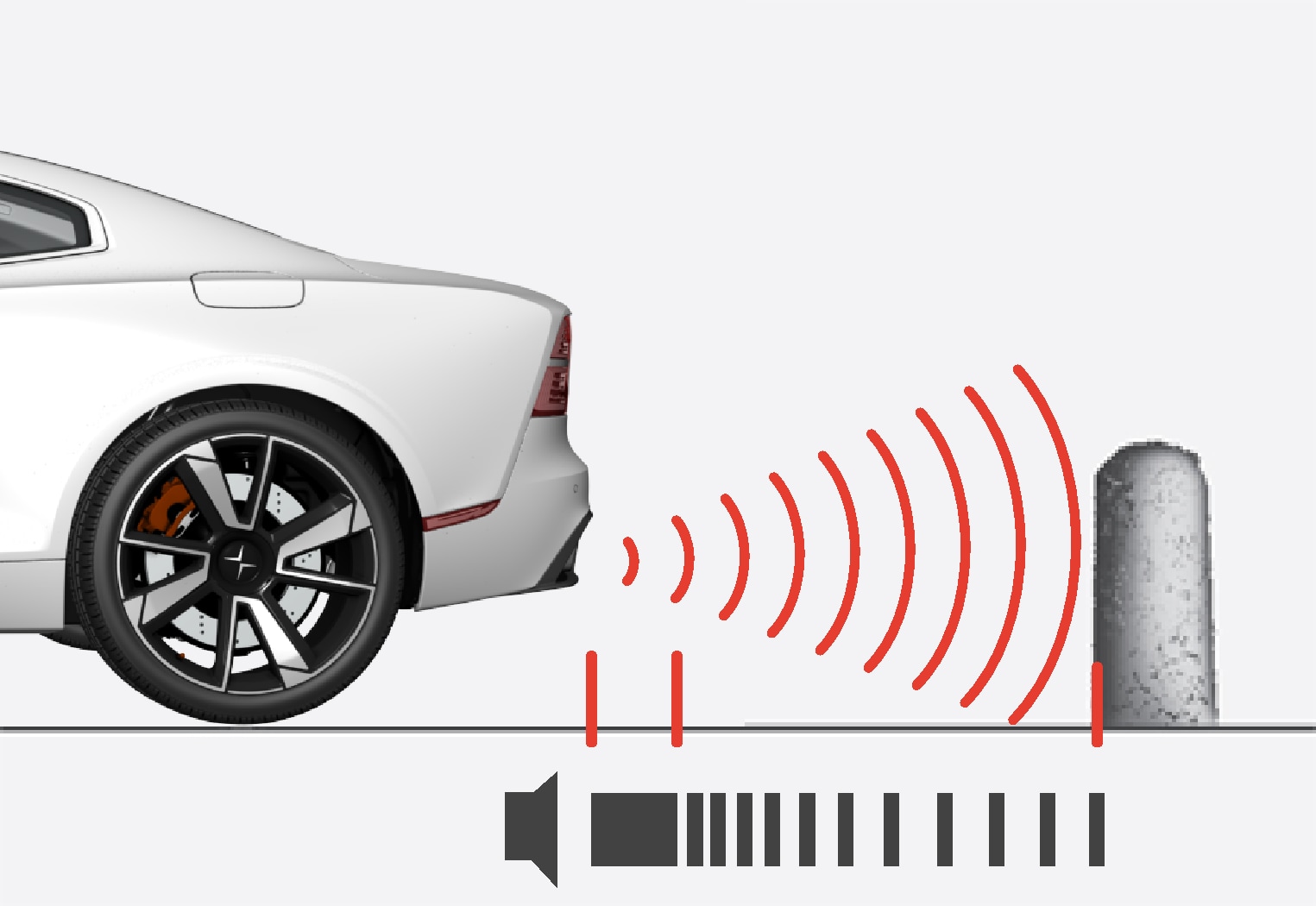

Backwards
![PS-1926-Park Assist System rear](https://www.volvocars.com/images/support/imgdaa5891f937a5b26c0a801524d7e262a_1_--_--_VOICEpnghigh.png)
The sensors for reverse are activated if the car rolls backward without a gear engaged or when the gear lever is moved to reverse position.
The measuring range is approx. 1.5 metres (5 ft) behind the car.
