Park Assist sensor field

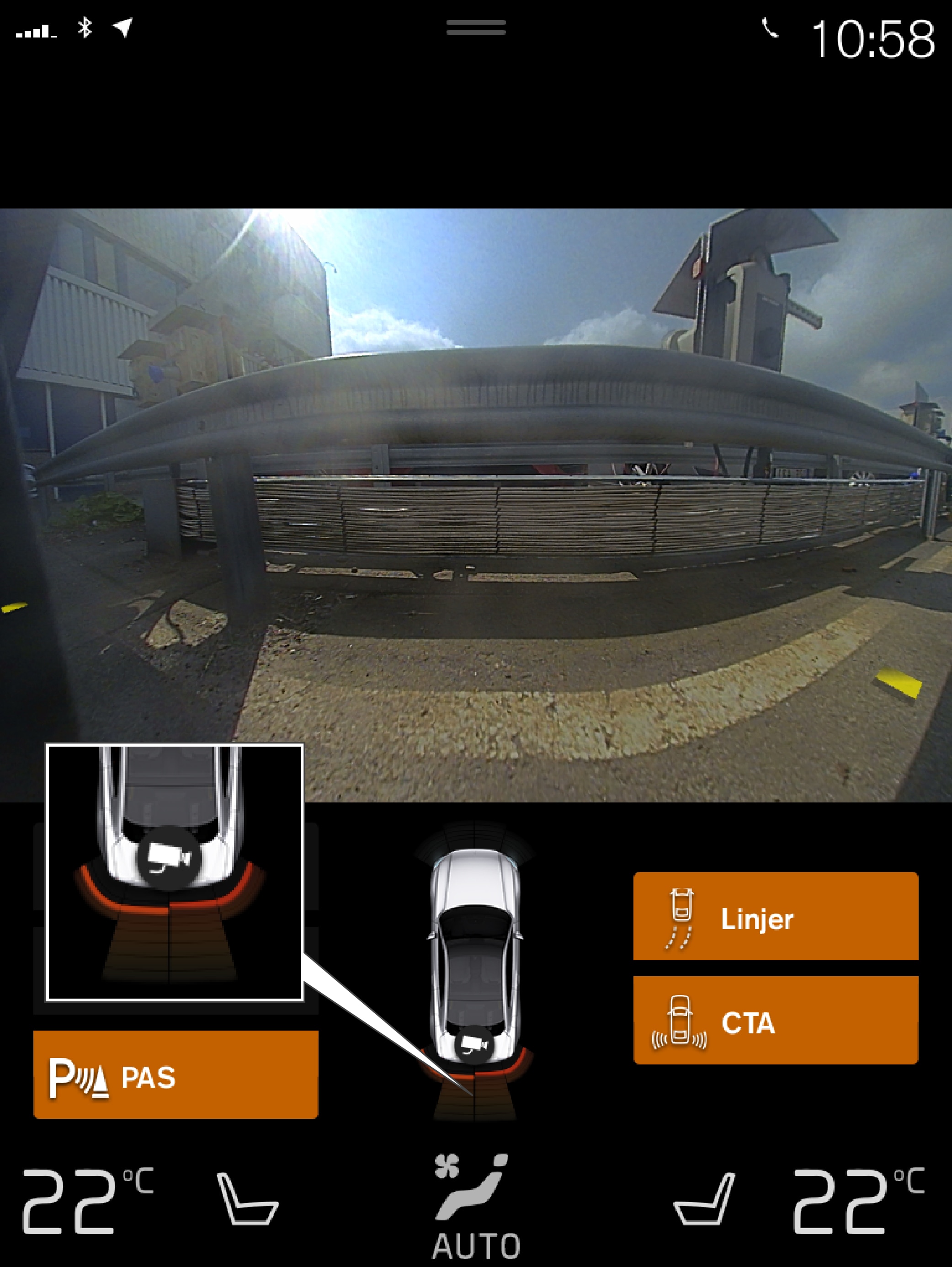

If the vehicle is equipped with Park Assist (PAS1), distances will be shown in the Park Assist Cameras' (PAC2) 360° view with colored fields for each sensor that has detected an obstacle.
Front and rear sensors
| Field color rearward | Distance in meters (feet) |
|---|---|
| Yellow | 0.6-1.5 (2.0-4.9) |
| Orange | 0.3–0.6 (1.0–2.0) |
| Red | 0-0.3 (0-1.0) |
| Field color forward | Distance in meters (feet) |
|---|---|
| Yellow | 0.6–0.8 (2.0–2.6) |
| Orange | 0.3–0.6 (1.0–2.0) |
| Red | 0-0.3 (0-1.0) |
When the sensor field color is red, the audible pulsing sounds will change to a continuous tone.
