Park Assist Camera trajectory lines

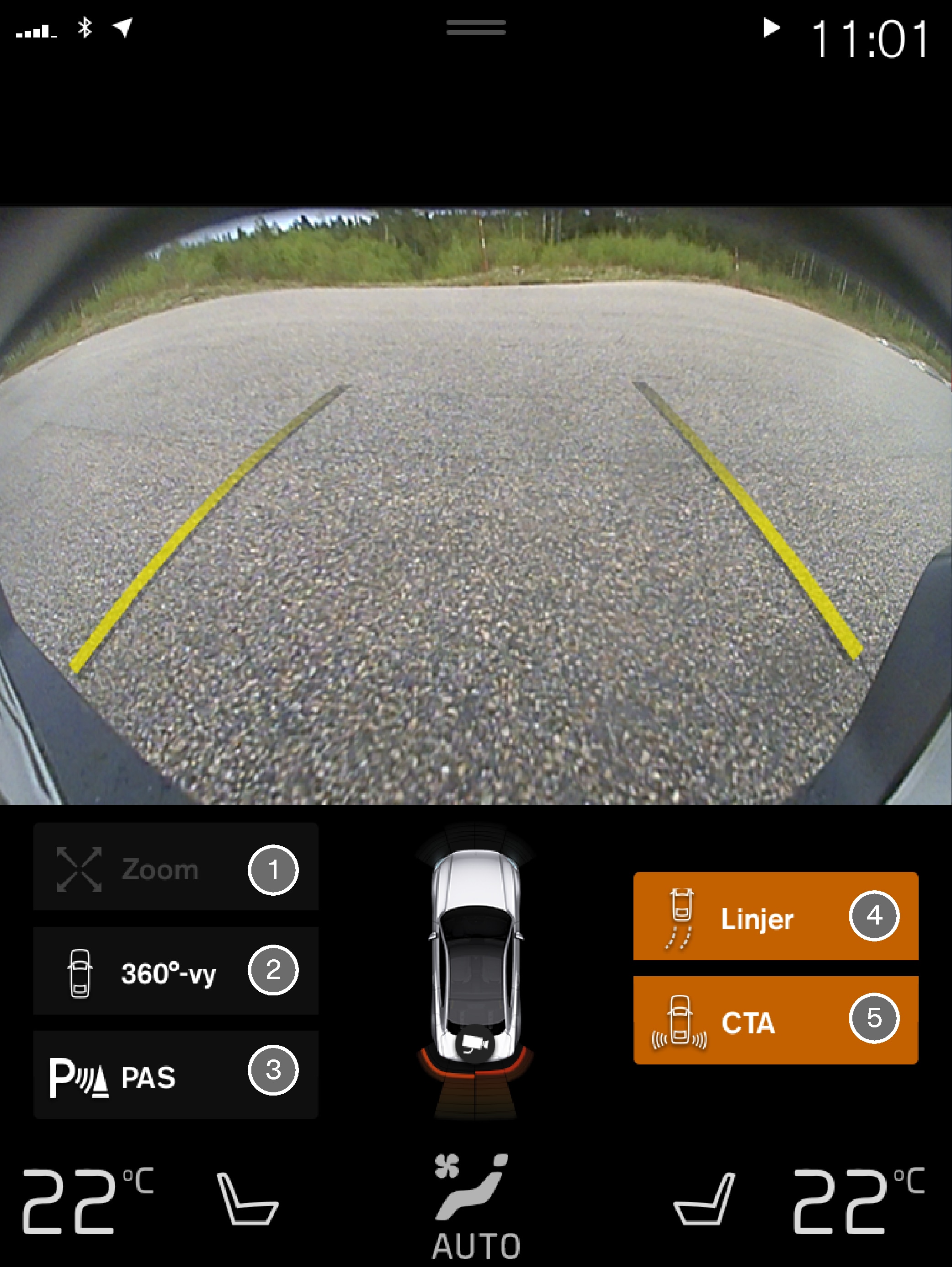

The trajectory lines show the anticipated trajectory for the vehicle's outermost dimensions based on the current position of the steering wheel and can help simplify parallel parking and backing into tight spaces.
The lines on the screen are projected as if they were painted lines on the ground behind the vehicle and are directly affected by the way in which the steering wheel is turned. This makes it possible for the driver to see path the vehicle will take, even if he/she turns the steering wheel.
These lines also indicate the outermost limits that any object (rearview mirrors, corners of the body, etc.) extends out from the vehicle.
Important
- Bear in mind that when the rearward camera view is selected, the screen only shows the area behind the vehicle – pay attention to the sides and front of the vehicle when steering while reversing.
- The same applies to the reverse – pay attention to what is happening with the rear parts of the vehicle when the front camera view is selected.
- Note that the guide lines show the shortest path – pay extra attention to ensure that the vehicle sides do not come in contact with/travel over anything when steering while driving forward or that the vehicle front moves toward/over anything when steering while backing up.
Trajectory lines in 360° view
- When driving forward: Front lines
- When backing up: Side lines and rear lines
When the front or rear camera is selected, the trajectory lines will be shown regardless of the vehicle's direction of travel.
With a side camera selected, the trajectory lines will only be shown if the vehicle is backing up.
