Fuses under the hood
To access the fuses under the hood, a number of panels around the storage compartment must be removed.
Fuse pliers are provided on the inside of the fuse box cover to assist in removing and inserting fuses.
There are spaces for several extra fuses in the fusebox.
Important
Positions

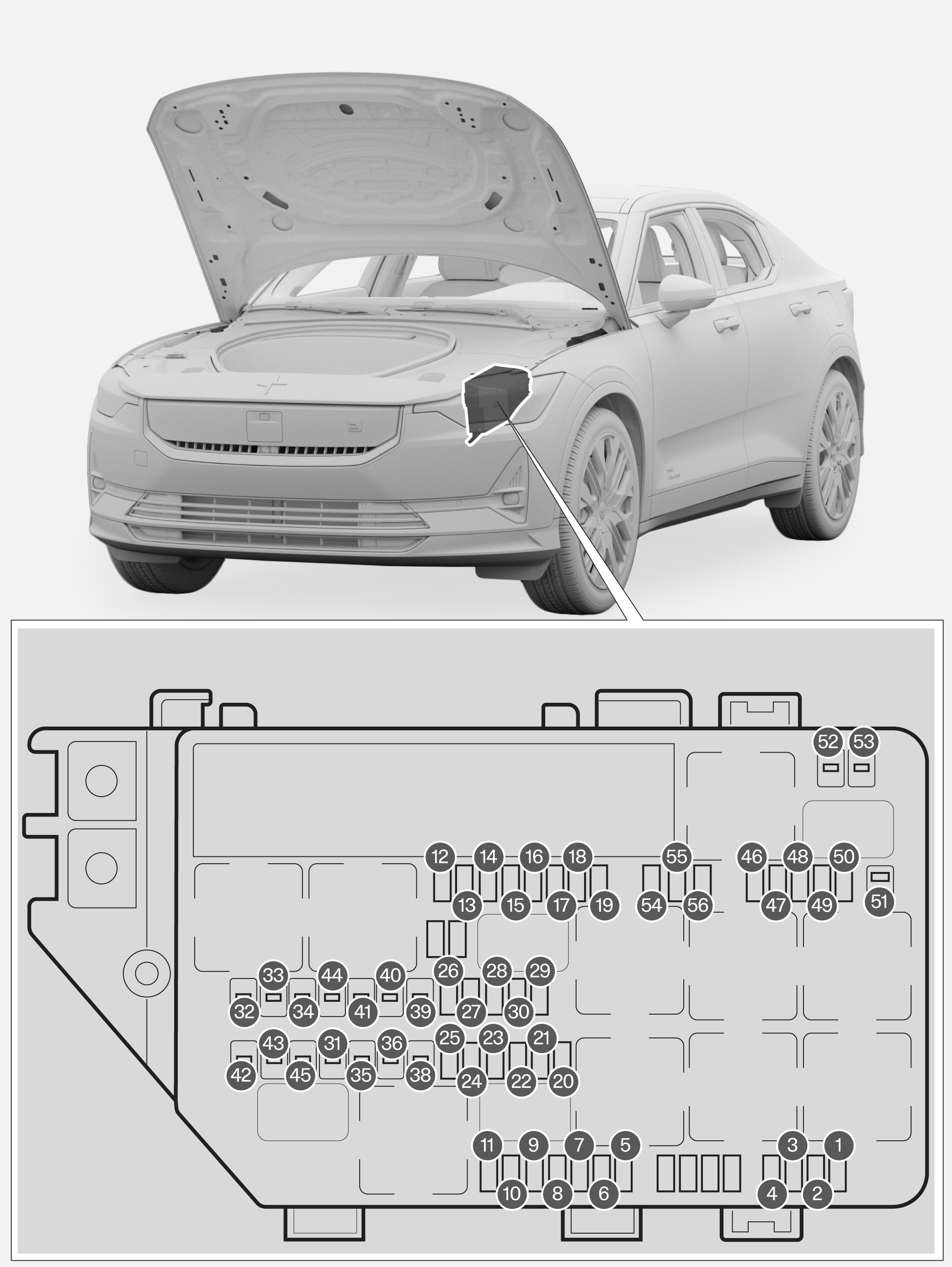

The location of the fuses is shown on the inside of the cover. Functions and components in the fuse table cover several different equipment options. A described fuse may therefore be used for fewer components than those listed in the table, or none at all, depending on how the vehicle is equipped.
| Function | Ampere | Type | |
|---|---|---|---|
 | USB port, tunnel console, rear | 7.5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | 12 V socket in trunk/cargo compartment* | 15 | Micro |
 | Electric motor control module | 10 | Micro |
 | Climate system coolant valve | 15 | Micro |
 | Battery cooling valve | 5 | Micro |
 | Spoiler damper control module Cooler damper control module | 10 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Headlight, right | 20 | Micro |
 | Headlight, left | 20 | Micro |
 | Collision module (SRS) Occupant weight sensor (OWS) | 5 | Micro |
 | Accelerator pedal sensor | 5 | Micro |
 | Supplied when the vehicle's electrical system is on: Electric motor control module, Transmission components, Electrical power steering, Central electrical module, Brake system control module | 5 | Micro |
 | Exterior sound module | 5 | Micro |
 | – | – | Micro |
 | Lighting, rear | 10 | Micro |
 | Internal relay windings | 5 | Micro |
 | – | – | Micro |
 | Brake pedal sensor | 5 | Micro |
 | Calculation module | 5 | Micro |
 | High-voltage battery | 5 | Micro |
 | – | – | Micro |
 | Electric motor control module | 5 | Micro |
 | On-Board Charger | 5 | Micro |
 | Electric motor converter, front | 5 | Micro |
 | Horn (honk) | 20 | Micro |
 | Alarm siren* | 5 | Micro |
 | Wipers | 30 | MCase1 |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | Brake control module | 30 | MCase1 |
 | – | – | MCase1 |
 | Headlights | 30 | MCase1 |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | Towbar control module* | 25 | MCase1 |
 | Towbar control module* | 40 | MCase1 |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | Water-cooled condenser | 5 | Micro |
 | AC compressor control module High-voltage heater control module Electric expansion valve control module Monitoring unit | 5 | Micro |
 | High-voltage battery control module Converter, electric motors | 15 | Micro |
 | High-voltage battery coolant pump | 20 | Micro |
 | Drive system coolant pump | 20 | Micro |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | – | – | MCase1 |
 | – | – | Micro |
 | Headlight, left | 20 | Micro |
 | Headlight, right | 20 | Micro |
